Wizard MagneSil Tfx™ System
Transfection-Quality Plasmid DNA in 96-Well Format
- Improved transfection and protein expression results
- Automated methods available
Catalog Number:
Size
Catalog Number: A2380
Ready-to-Go Kit, Expert Support Available
The Wizard MagneSil Tfx™ System is compatible with automation on all major platforms, including Hamilton Star/Nimbus, Tecan Freedom Evo/Fluent, Biomek i5/i7, Eppendorf epMotion, and particle movers such as KingFisher.
With decades of experience in building personalized automation solutions, we can help you customize the scale, application, and chemistry, regardless of platform, exactly to your needs—the only limit is your imagination.
Transfection-Grade Plasmid at Any Scale
The Wizard MagneSil Tfx™ System provides a simple, rapid method for isolating transfection-quality plasmid DNA in a 96-well, high-throughput format. The use of paramagnetic particles for lysate clearing as well as DNA capture circumvents the need for centrifugation or vacuum manifolds, allowing DNA purification to be completely automated.
Automated Plasmid Extraction: Example Data
These application notes contain protocols and example data using the Wizard MagneSil Tfx™ System to purify plasmid DNA on various robotic systems.
- Semi-Automated Purification of Transfection-Grade Plasmid from Large Volume Bacterial Cultures
- 96-well Plasmid Purification from 1-2ml Bacterial Cultures on KingFisher™ Flex Instrument using Wizard MagneSil Tfx™ System
- High-Throughput Plasmid Purification with Large-Volume Bacterial Cultures on the Hamilton STAR Liquid Handler
- High Throughput Plasmid Purification with Large Volume Bacterial Cultures on the Tecan Freedom Evo® Instrument
- Automated Purification of Plasmid DNA using Promega Wizard MagneSil Tfx™ System on the Analytik Jena CyBio FeliX Liquid Handler
Protocols
Complete Protocol
Specifications
Catalog Number:

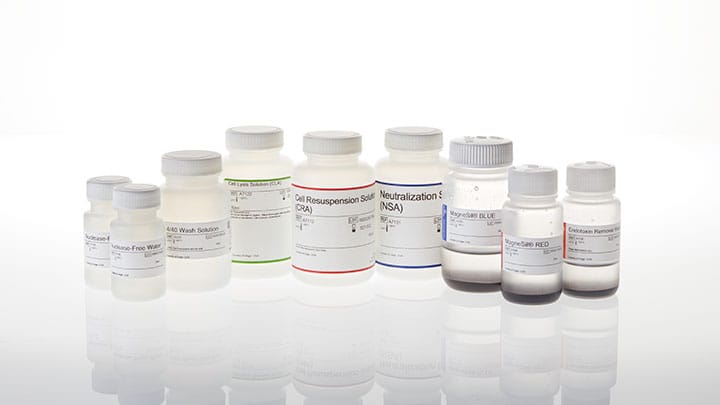

What's in the box?
| Item | Part # | Size | Available Separately |
|---|---|---|---|
|
MagneSil® RED |
A164A | 1 × 30ml | View Product |
|
Endotoxin Removal Resin |
A219D | 1 × 19ml | View Product |
|
MagneSil® BLUE |
A220D | 1 × 38ml | View Product |
|
4/40 Wash Solution |
A222D | 1 × 38ml | View Product |
|
Cell Resuspension Solution (CRA) |
A7112 | 1 × 150ml | |
|
Cell Lysis Solution (CLA) |
A7122 | 1 × 150ml | |
|
Neutralization Solution (NSA) |
A7131 | 1 × 150ml | |
|
Nuclease-Free Water |
P119C | 2 × 25ml | View Product |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
For Research Use Only. Not for Use in Diagnostic Procedures.Storage Conditions
U.S. Pat. Nos. 6,284,470 and 7,078,224 and other patents and patents pending.
